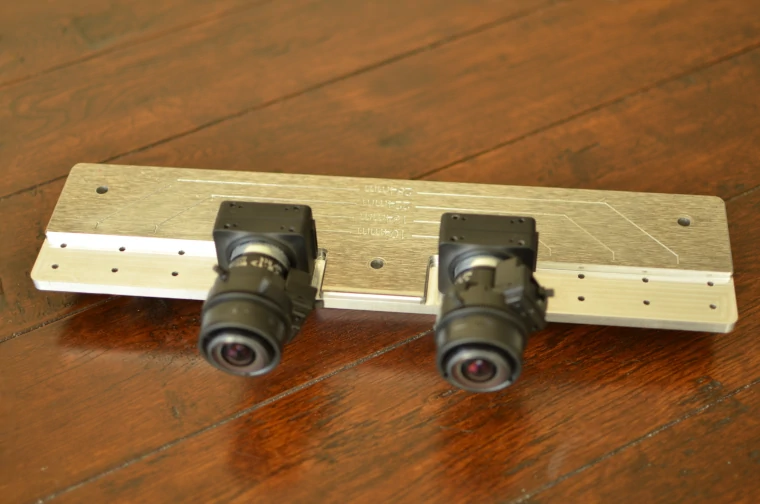

CNC Machined Stereo Camera Mount

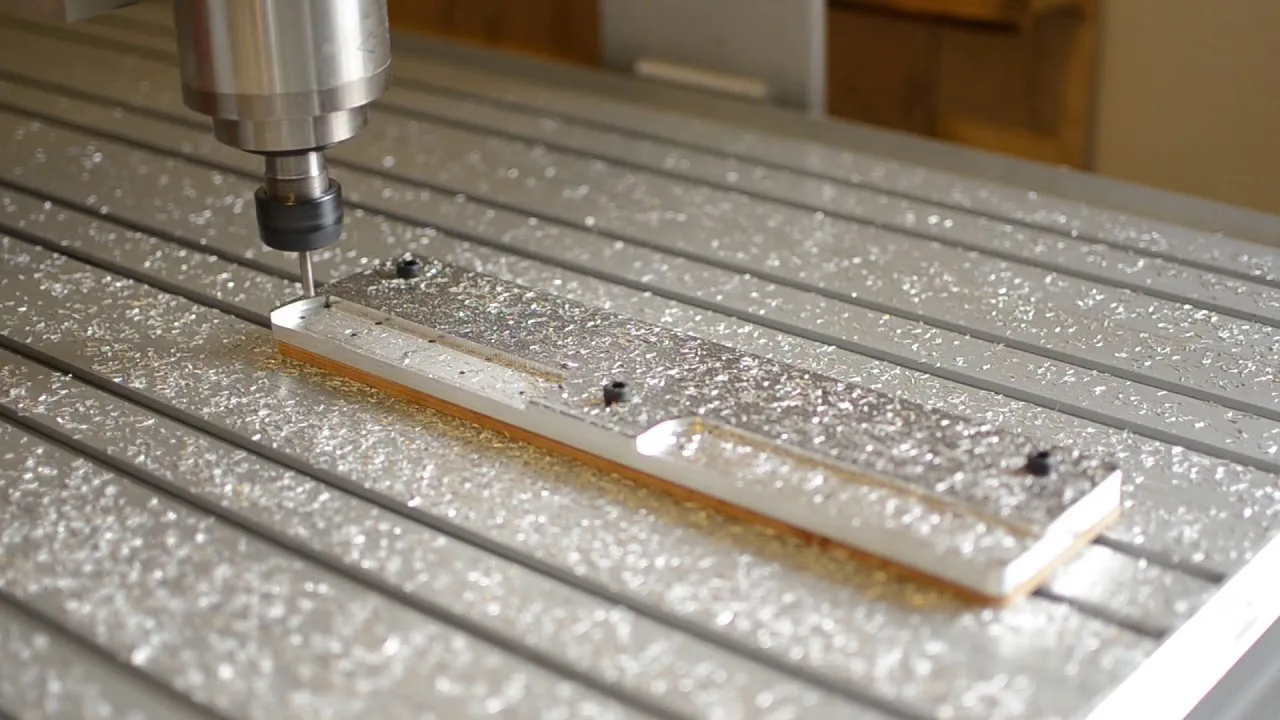

In 3D machine vision applications, making sure your cameras are held rigidly at a well known separation is critical. This solid aluminium mount holds a pair of PointGrey Chameleon3 industrial cameras inline with each other and offers four baseline mounting options. This is the first project where I've used the OmioCNC machine to mill aluminium (so there are some rough edges), but the result is more than adequate for use as a development mount for data capture.

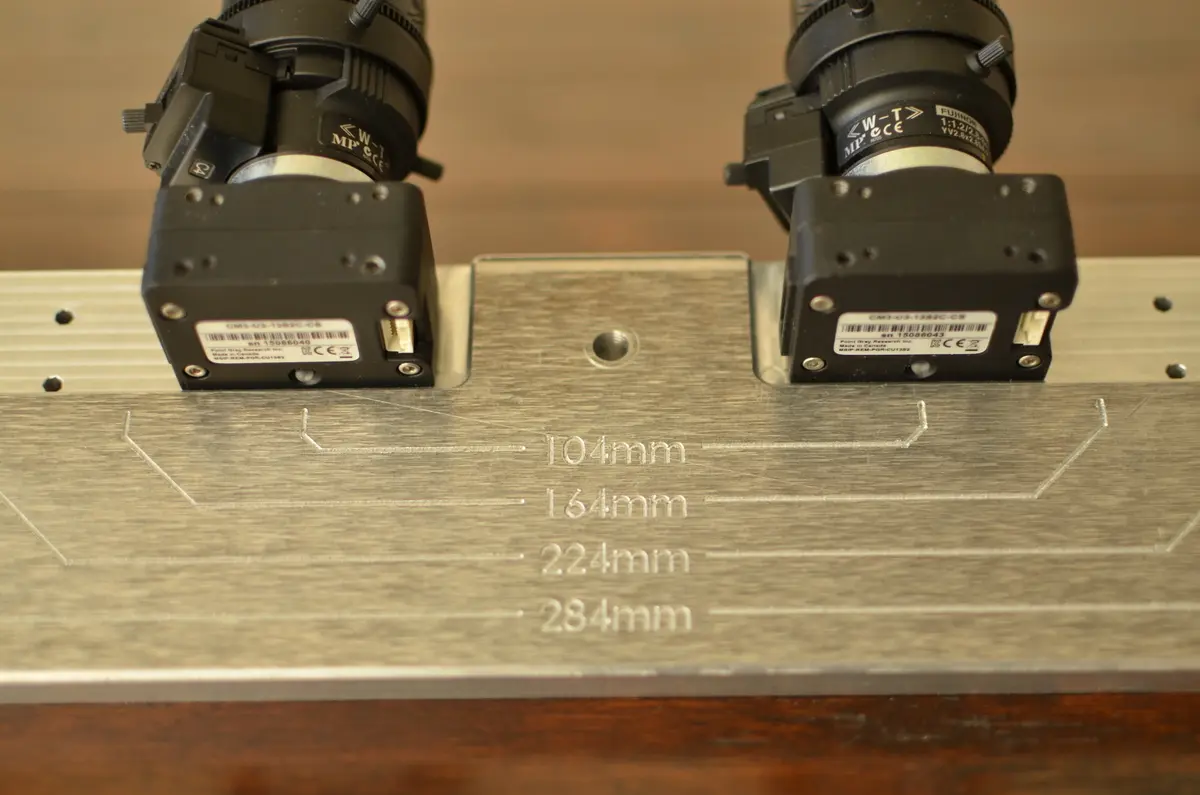

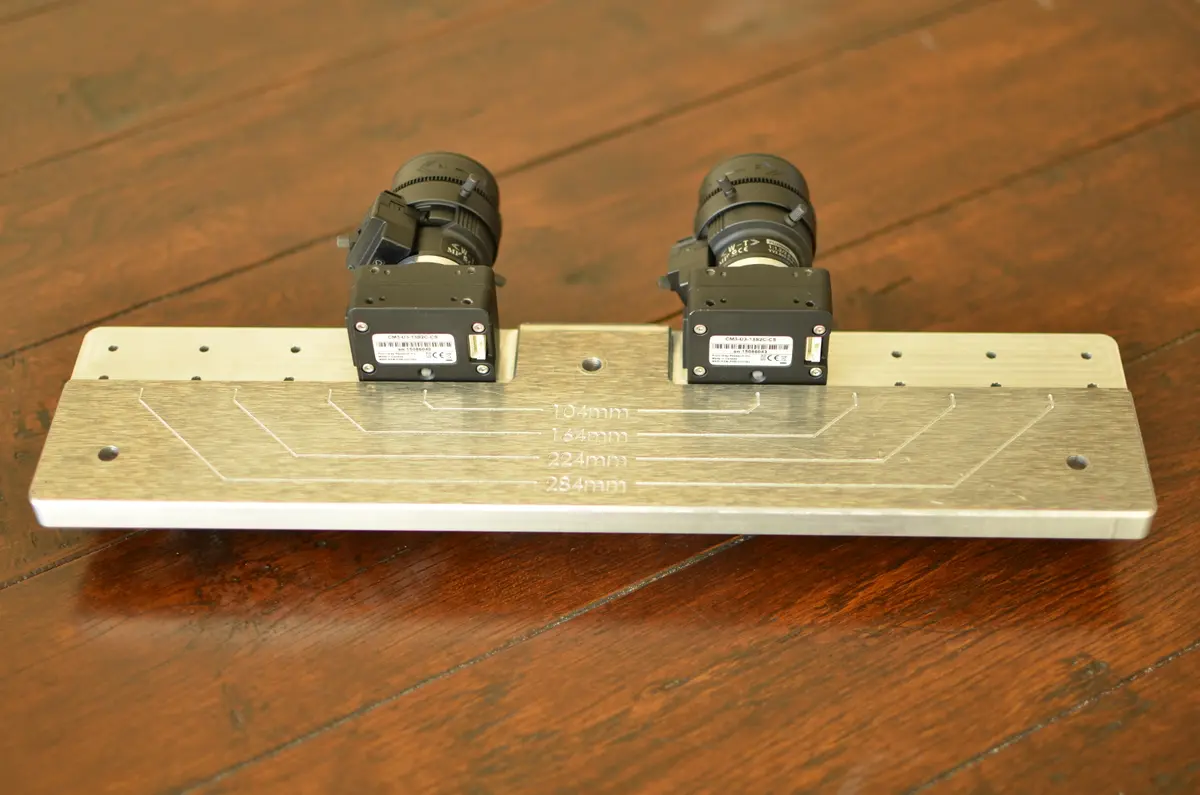

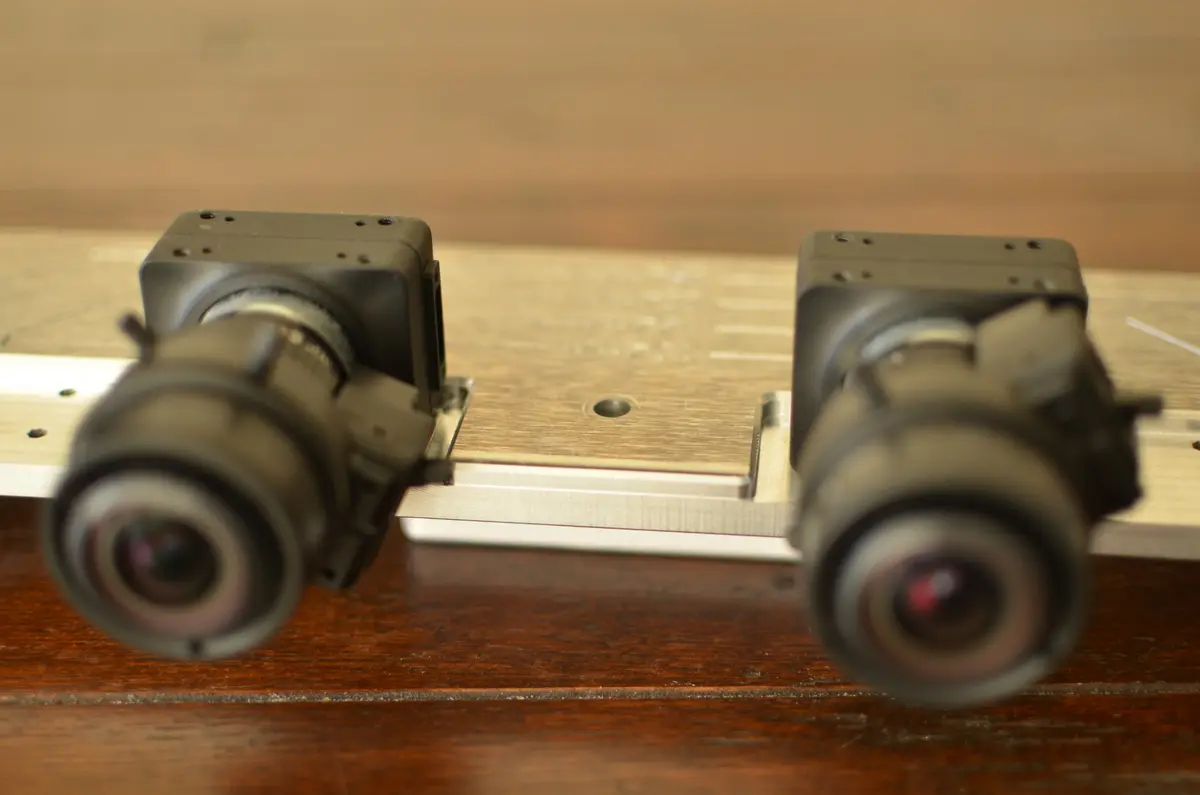

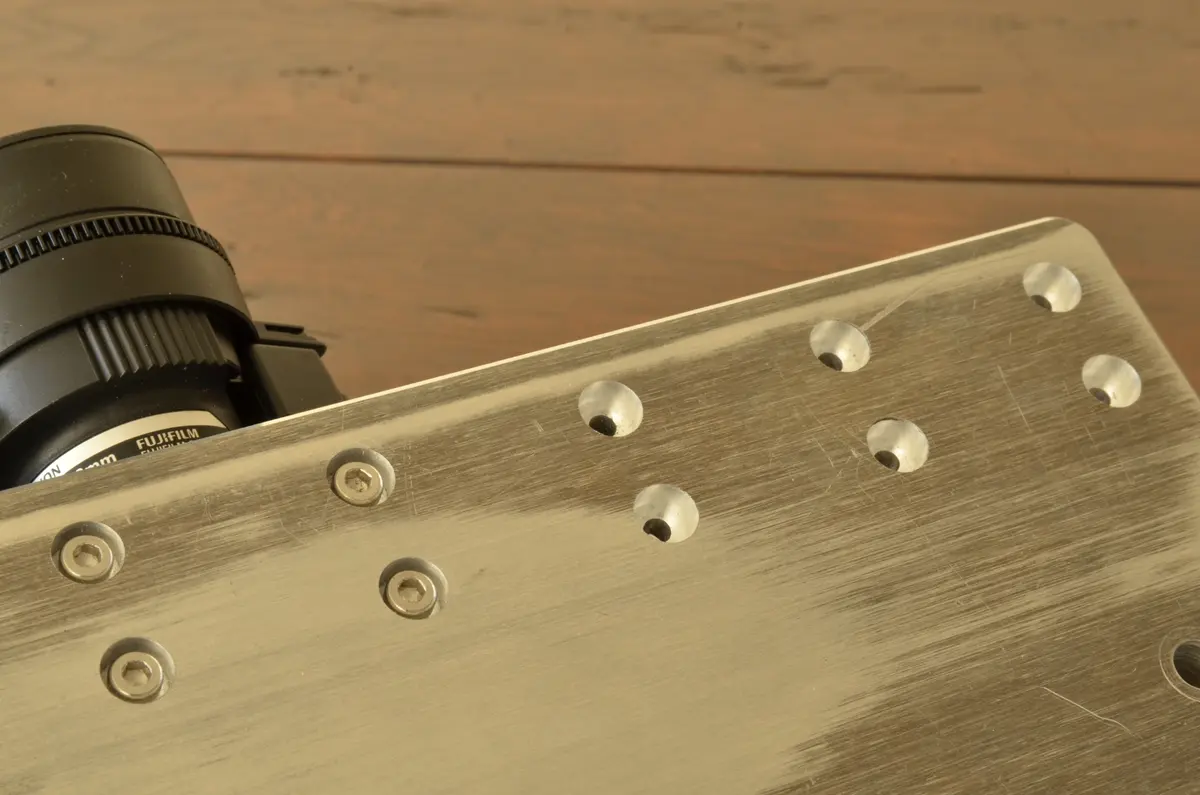

CNC Camera Mount Close-up Front CNC Camera Mount Close-up Underside CNC Camera Mount Close-up Top CNC Camera Mount
